Rear Camber Bolt Kit, 2013-16 Dart

Read or Write Review

Model Number: 226302-ALIGNMENT

If you have a 2013-16 Dart and are going to lower your it more than 1.4-1.5 inches, this is an important piece. The rear wheels of the car will camber in, and that causes accelerated inner tire wear which is not good. So, with this camber bolt kit, it allows further adjustment, which allows your alignment shop to get your wheels back to factory spec, which allows your tires to last longer!

A lot of customers ask us if this is really needed when dropping their Dart more than 1.4 inches, and the answer simply is YES.

Works great with lowering springs and coilovers.
These camber bolts allow for an additional 1.5 degrees of camber adjustment BEYOND factory spec.
These are only for the rear of the car, which is the problem area on the Dart and Renegade when lowering.

$59.99

Rear Camber Bolt Kit, 2013-16 Dart , Suspension & Chassis: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
cole

Will these be able to give you more negative camber?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  Although this product is designed to get rid of negative camber, it does allow for more camber adjustment and would allow more negative camber.
Andrew

So if I buy this with the eibach sport line springs, these will put my tires back to factory ( no camber )?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  After you install the sportline springs, and this camber kit, you can get an alignment done and get it very close to factory spec, yes.
Bailey

in the kit is there 4 bolts or do I need to buy two kits to do my whole car?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

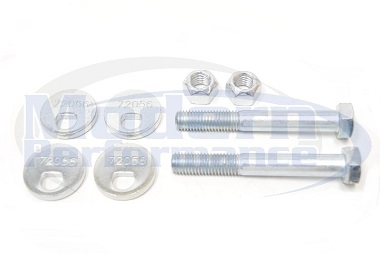

  Just as pictured, there are two bolts, and corresponding shims and nuts. One order of these completes the rear alignment. These are not used for front alignment. Your alignment shop can do the front alignment, and then adjust the rear with this kit.
Josh m

Is this necessary if I'm planning to purchase the BC coilovers and lower by approximately 3" or is it only necessary when using lowering springs?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  If you plan on lowering your Dart with any spring, or coilover more than 1.75-2 inches you'll need this camber bolt kit.
Mike

I understand that my shop will align the front but I'm a little fuzzy about this camber kit. Do I put these on and then there is an additional servicing needed to them so they are accurate or do I provide this kit to my shop so they can install them?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  These camber bolts, replace your factory bolts. These allow adjustment, whereas the factory bolts are fixed. With these camber bolts, you can adjust the bolts position and change the camber to compensate for lowered Darts.
Tyler

My shop told me they physically cant get my rear suspension to sit correctly since new. It always wears the insides of my tires if they arent rotated properly. Will this product fix the negative camber that these cars are designed with?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  If you have negative camber currently and want to adjust it out, this will give you further camber adjustment to try and adjust the negative camber out further. It sounds like this is what you need.
Misha

Forgive me if this is a dumb question, I'm not super familiar with the suspension hardware yet. Could you please briefly explain how this works to correct the camber? Because to me it looks like a couple of bolts with some weird shaped washers. Thanks!

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  These specially made bolts have cams on them that change the angle of the rear suspension depending on how much the bolt is rotated. Regular bolts are straight and are not adjustable, but these are.
Jason

Is there a difference between these and the stock camber bolt? Yes, mine came stock from the dealer with camber bolts.

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Stock camber bolts are non adjustable. These are adjustable for extra camber adjustment. If you look under your car on the backside you'll either see flat black bolts and washers that are OEM, or these shiny silver pieces.
Rick

I don't plan on lowering my dart, but Would this product help with the current negative camber on the rear? Could I use this kit without lowering my dart?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This can work on stock suspensions as well as lowered Dart's. Either way this gives you additional camber adjustment.
dennis torres

my16 gt came factory with camber bolts, exactly with the once you have pictured, and have been able to adjust camber, now that i have air ride, i cant get back in specs, do these adjust more then the factory ones?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Darts from the factory do not have camber bolts. If you have camber bolts, then its because a previous owner installed these. There is no way to get more camber adjustment.
