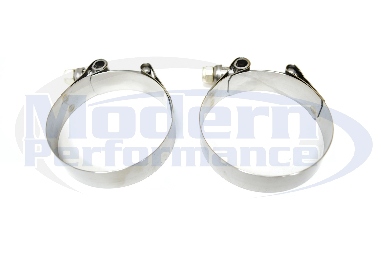

Vibrant T-Bolt Clamps

Read or Write Review

Model Number: 601173

If you have a Turbocharged vehicle, then you should seriously consider purchasing this product.

Turbocharged vehicles typically come equipped from the factory with worm gear clamps that are thin and don't seal the hose very well. These T-bolt clamps are 150% wider than most factory worm gear clamps, so they clamp down on pressure hoses much better. This prevents your turbo pressure hoses from blowing off.

Available in 2.00", 2.25", 2.50" and 3.00" sizes. Price listed is for a pair of clamps.

Clamps have a larger range than what you'd expect, to take into account the thickness of the rubber or silicone couplers you are using. So, a 2.5 inch clamp doesn't measure 2.5 inches at its smallest, its 2.53 inch and 2.75 at largest. Measurements below:

2.25 inch clamps have a 2.53 to 2.75 range.

2.5 inch clamps have a 2.75 to 3.10 range.

2.75 clamps have a 3.01 to 3.25 range.

3.00 inch clamps have a 3.28 to 3.60 range.

Option

$12.99

Additional Options

Vibrant Straight Silicone Coupler

Model Number: 601167

Vibrant silicone couplers for your custom turbo or intake projects! 4-ply (no 3 ply here!) silicone available in red Read more

Option Option

Vibrant Hump Silicone Coupler

Model Number: 601169

Vibrant silicone couplers for your custom turbo or intake projects! 4-ply (no 3 ply here!) silicone available in red Read more

Option

Vibrant Elbow Silicone Coupler

Model Number: 601170

Vibrant silicone couplers for your custom turbo or intake projects! 4-ply (no 3 ply here!) silicone available in red Read more

Option Option

Vibrant T-Bolt Clamps, Couplers, Clamps & Boost Leak Testers: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
Chris

What size is needed for the MPx or stock intercooler?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Modern Performance

  If you have a Cobalt SS Turbo, Neon SRT4, or Caliber SRT4, then use 2.5 inch.
juan

Do this clamps come in pairs or sold individually?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Modern Performance

  These are sold in pairs.
Mark

What is the open/close measurement of the 2.5 clamp? I have been using 3 inch clamo but I need to go a little smaller

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Clamps have a larger range than what you'd expect to take into account the thickness of the rubber or silicone couplers you are using. So, a 2.5 inch clamp doesn't measure 2.5 inches at its smallest, its 2.53 inch and 2.75 at largest. Measurements below:

  2.25 inch clamps have a 2.53 to 2.75 range.
  2.5 inch clamps have a 2.75 to 3.10 range.
  2.75 clamps have a 3.01 to 3.25 range.
  3.00 inch clamps have a 3.28 to 3.60 range.
Kyle

What exact sizes and quantities are needed to replace all the factory boost clamps on a Neon SRT4?

Thank you!

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  On the Neon SRT-4, every clamp is 2.5 inches except for the turbo outlet which is 2.25. If you have all factory hoses, then you'd need one 2.5 inch clamp for the hotside intercooler, and two for the cold side. If you have a aftermarket uppipe, you'd need four clamps on the cold side.
