TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve
TiAL Sport Q Series 50mm Blow-Off Valve

TiAL Sport Q Series 50mm Blow-Off Valve

    Model Number:
$278.95
/

The TiAL Sport Q Series Blow-Off Valve is a high-performance, 50mm blow-off valve designed for turbocharged applications requiring exceptional airflow and reliable boost pressure relief. Engineered to flow 60% more air than TiAL's original BV50 design, the Q Series helps reduce compressor surge when the throttle closes, improving turbocharger protection and response.



Featuring precision CNC-machined billet aluminum construction, a large 50.5mm valve, and a high-temperature reinforced silicone diaphragm, the TiAL Q Series delivers dependable operation even in demanding high-boost applications.



Features & Benefits:

  • 60% Greater Airflow: Improved flow capacity compared to TiAL's original BV50 blow-off valve.

  • High-Flow 50mm Design: Capable of supporting high-horsepower turbocharged applications.

  • Billet Aluminum Construction: Precision CNC-machined components for strength and durability.

  • Reinforced Diaphragm: High-temperature, Nomex-reinforced silicone diaphragm for long service life.

  • Wear-Resistant Components: Anodized valve stem and guide help minimize wear.

  • V-Band Mounting: Secure aluminum V-band clamp with stainless steel hardware.

  • Direct TiAL Compatibility: Fits existing standard TiAL BV50 mounting flanges without re-welding.

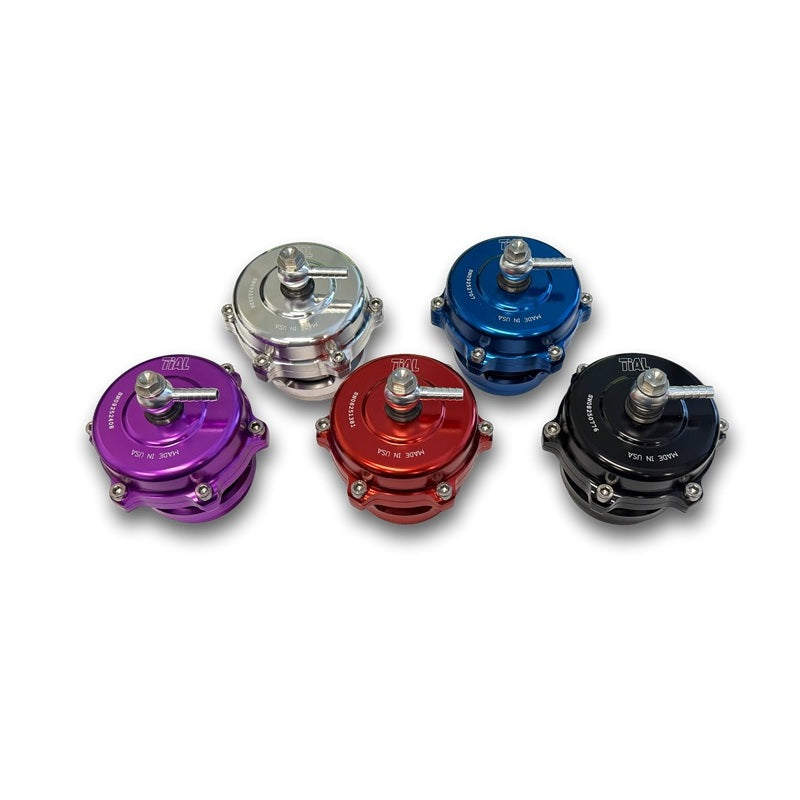

  • Multiple Colors: Available in Silver, Red, Blue, Purple, and Black anodized finishes.

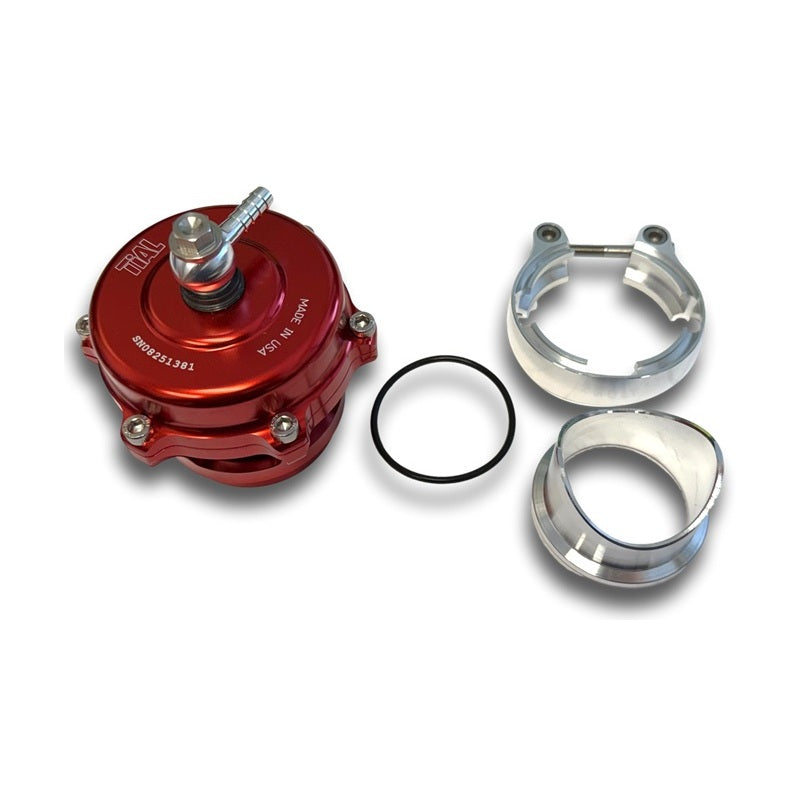

Included Components:

  • TiAL Q Series 50mm Blow-Off Valve

  • Aluminum weld-on mounting flange

  • Aluminum V-band mounting clamp

  • Air fitting assembly

  • Mounting flange O-ring



Technical Specifications:

  • Valve Diameter: 50.5mm (approximately 2 inches)

  • Construction: CNC-machined billet aluminum

  • Vacuum Connection: M10 threaded port

  • Application: Turbocharged and compatible supercharged systems



Important: This valve is supplied with a 10 PSI spring. Blow-off valve spring selection should be based on engine vacuum at idle, not maximum boost pressure. Verify compatibility with your application before ordering.
