Want more horsepower from your Neon SRT-4 or turbocharged PT Cruiser without the expense and complexity of a complete aftermarket turbo kit?

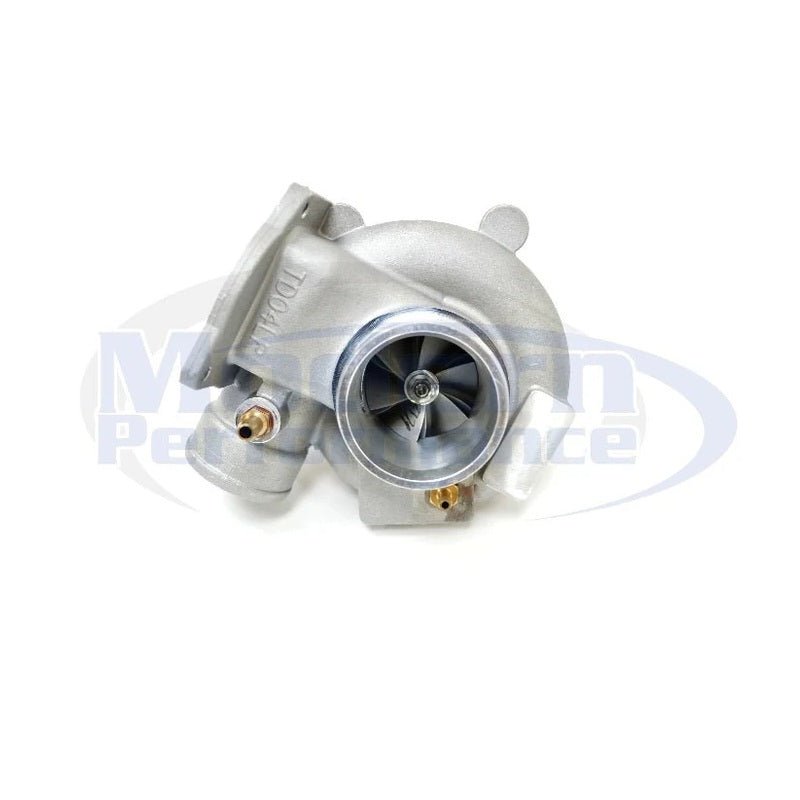

The AGP Big Wheel Stock (BWS) Turbo is an excellent option for enthusiasts who want improved airflow, increased horsepower potential, and the quick-spooling characteristics of the factory turbocharger.
Unlike companies that rebuild worn-out factory turbos with larger compressor wheels, this is a brand-new turbocharger assembly, built with larger compressor and turbine wheels from the start. No old, high-mileage turbo components are reused!
More Airflow, More Horsepower Potential
The factory Neon SRT-4 and PT Cruiser GT turbocharger uses a compact TD04-based design that provides excellent low-RPM response but becomes increasingly restrictive as horsepower demands increase.
The AGP Big Wheel Stock Turbo improves upon this design with larger compressor and turbine wheels, allowing it to move more air than the factory turbocharger while retaining the original turbo mounting arrangement.
With proper tuning and supporting modifications, this turbo can produce approximately 300 wheel horsepower at 18 PSI, with higher output possible in more aggressive combinations.
For owners looking for a responsive street turbo rather than a large, slower-spooling aftermarket setup, the BWS offers an attractive balance of performance and simplicity.

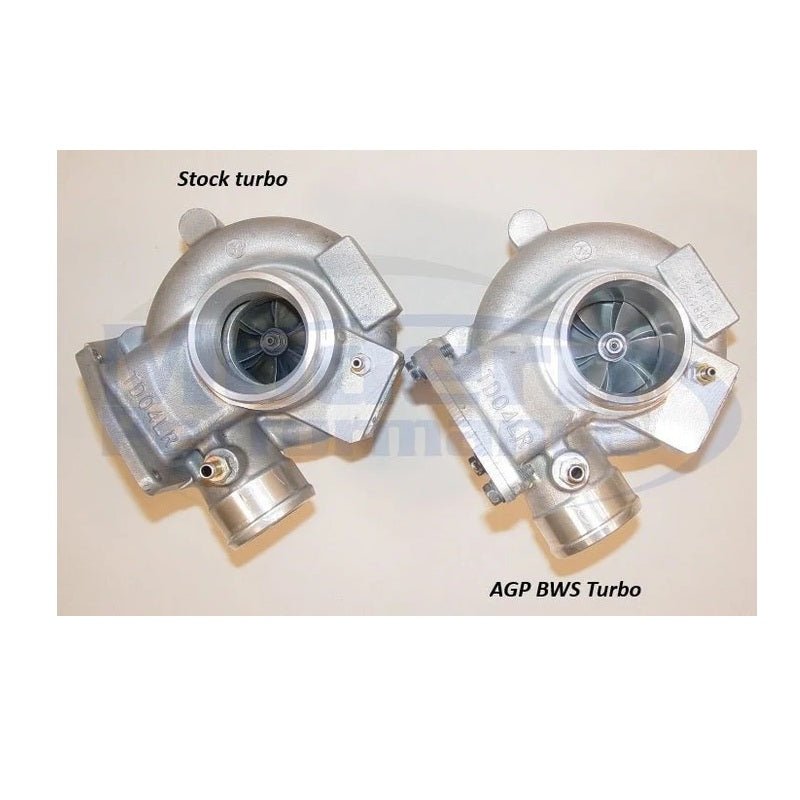

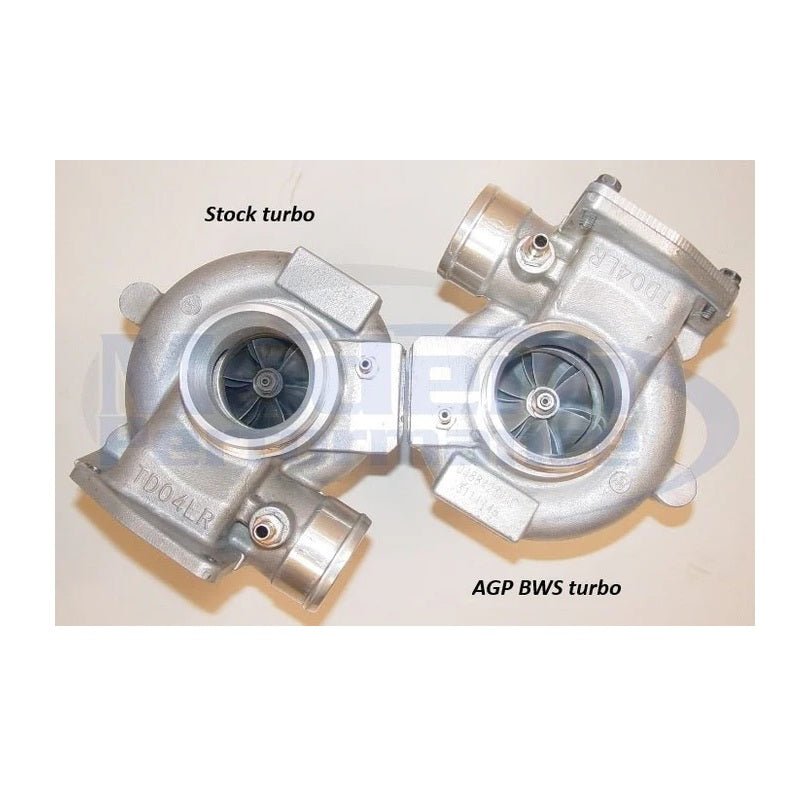

Factory Turbo vs. AGP Big Wheel Stock
| Compressor Wheel Specification |
Factory Turbo |
AGP BWS Turbo |
| Inducer Diameter |
43.4 mm |
48.3 mm |
| Exducer Diameter |
56.1 mm |
68 mm |
The larger compressor wheel provides increased airflow capacity, helping the engine produce more power when combined with appropriate fuel system upgrades, tuning, and other supporting modifications.
Features and Benefits
-
Brand-New Turbo Assembly: Not a rebuilt or modified high-mileage factory turbocharger.
-
Larger Compressor and Turbine Wheels: Increased airflow capability compared with the original turbo.
-
Quick-Spooling Design: Retains the responsive characteristics that make the factory turbo enjoyable for street driving.
-
Factory-Style Fitment: Designed to work with the original cast-iron turbo manifold and existing mounting arrangement.
-
VSR High-Speed Balanced: The rotating assembly is professionally balanced at high speeds for smooth operation and reliability.
-
Reuse Factory Components: Compatible with the factory wastegate actuator and surge valve, or appropriate aftermarket replacements.
-
No Core Charge: Keep your original turbocharger! There is no requirement to send us your old unit.
-
90-Day Warranty: Covered against manufacturing defects.
What's Included?
The factory wastegate actuator, surge valve, and turbine spacer ring must be transferred from your original turbocharger. These components are not included.
Installation Information
The AGP BWS Turbo is designed to replace the turbocharger cartridge assembly while retaining your existing factory cast-iron exhaust manifold.
Simply remove the original turbocharger cartridge, transfer the necessary factory components, and install the new BWS assembly using the appropriate gaskets and hardware.
IMPORTANT: You MUST reuse the factory turbine spacer ring during installation. Failure to install this ring will result in turbine wheel damage.
Boost Pressure and Tuning Recommendations
AGP recommends operating this turbo at 18 PSI or less. Like other TD04-based turbochargers, excessive boost pressure can result in extremely high turbo shaft speeds, potentially shortening the turbocharger's service life.
Although some SRT-4 owners have successfully operated Big Wheel Stock turbos at 22–25 PSI, these pressures exceed AGP's recommendation and may increase the risk of premature turbocharger failure.
For the best combination of performance and reliability, we recommend following AGP's boost pressure guidelines and using proper engine tuning.
Horsepower output will vary depending on your vehicle's modifications, fuel quality, engine condition, and calibration.
Recommended Parts to Replace During Installation
Whenever installing a new turbocharger, we strongly recommend inspecting and replacing the oil supply line, oil drain line, and related gaskets as needed.
The factory oil feed line has several bends where sludge and deposits can accumulate over time. Restricted oil flow can quickly damage a new turbocharger.
At a minimum, we strongly recommend replacing the factory turbo oil feed line and its associated fittings and gaskets.
Replacement components are available separately:
-
Part Number 220229, Option #4: Oil feed line
-
Part Number 220229, Option #5: Oil feed fitting and related gaskets
Be sure to use fresh oil and coolant connection gaskets during installation.
An Affordable Upgrade for Your Factory Turbo Setup
If you're looking for additional horsepower without switching to a complete aftermarket turbo system, the AGP Big Wheel Stock Turbo is a practical upgrade.
You get a brand-new, larger-wheel turbocharger, factory-style installation, responsive boost characteristics, and the potential for significantly more power than the original turbo.
No core charge, no waiting for your old turbo to be rebuilt — just a brand-new turbo upgrade ready for your SRT-4 or turbocharged PT Cruiser!
