OEM Turbo System Components, 03-05 Neon SRT-4 / 03-07 PT Cruiser GT

Read or Write Review

Model Number: 220229-

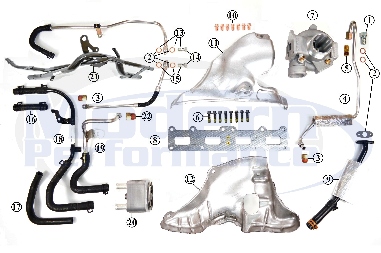

This listing is for the remaining available Turbo System Components for the 03-05 Neon SRT-4 & 03-07 PT Cruiser GT. Please note that while the majority of these items are OEM parts, several items have been discontinued by Mopar and we have done our best to source alternative parts.

Note: The oil feed line (item #4) originally used on the Neon SRT-4 has since been superseded by a newer design used on PT Cruiser turbo models. This newer design is not compatible with the original banjo bolt (item #1), but instead uses a threaded fitting (item #5). If you intend to replace your oil feed line, please be sure to also add the threaded fitting to your shopping cart.

As of late 2019, Mopar has discontinued both the upper and lower heat shields (items #11 & #12). We have limited quantities of the lower heat shield in stock, but the upper heat shield is now sold out.

Option

$27.99

OEM Turbo System Components, 03-05 Neon SRT-4 / 03-07 PT Cruiser GT, OEM Turbo System Components: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
John Hogan

Does #9 come with the hose attached as well?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Yes, items come exactly as shown in the photo, #9 includes the hose exactly as shown.
Adrian

Is #13 the coolant line behind the motor that goes to the turbo?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  All of the lines on left side of photo are coolant. All of the lines on right side of photo are oil. The #13 is the coolant line on top of engine that is in between battery and valve cover. The #15 is the one that connects to the turbo, and connects to the the brass fitting that is in the block.
Steven Stockland

I recently replaced the chra on my '03 PT GT, and nowhere did I see #1 on the diagram. Is this piece on certain years, kits, upgrades, etc?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  The Neon SRT-4 uses #1 banjo bolt. The PT/GT use #5 oil feed fitting.
Anthony hall

Is #3 required for #4 as well?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  If you want to replace the oil feed line #4, you need to get part number 5 with it. Number 3 is the same as the factory one, you can replace it if you wish, but #5 MUST be bought with #4.
Oscar

Hello, I'm doing a bws installation in my car and I want to replace all the oil and coolant lines as well, I will need to replace the gaskets, fittings and washers and banjo bolts, is there a kit complete for that.?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  There is no kit, however we carry everything you have asked for. Search for part number 220229 in the search bar, and you'll find the turbo components part listing.
Patrick Sellers

Does the #1 banjo bolt work on a stock srt4?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  #1 is the OEM style banjo bolt that will work with the Neon SRT4 OEM oil feed line. Its no longer used with the new oil feed line, so you should only order/use #1 if you are reusing old OEM Neon SRT4 oil lines.
Ben Beach

Does. #9 come with bolts as well? I was installing the drain tube back in after replacing the turbo and I failed to fully start one of them and it fell and I have absolutely no idea where it went. I've spent nearly 3 hrs looking. If not does anyone know the size?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  #9 drain tube comes exactly as shown, no bolts. As of 2021 we have not offered the drain tube bolts.
Jordan

I'm needing to replace #4, oil feed line for the stock turbo. Mine is a steel braided line, the one pictured looks like a hard line. Which one would be the correct type?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Like we mention on the product page - #4 oil feed line was discontinued by Mopar, and has been replaced with the PT Cruiser style hose. It will work fine on your Neon SRT-4, however you need to use the new #5 fitting with it. It will look different than the OEM Neon SRT-4 oil feed line, yes.
