AGP Upper Hard Pipe (UHP) w/ Blow Off Valve Flange, 03-05 Neon SRT-4

Review star icon Review star icon Review star icon Review star icon Review star icon
Model Number: 220221

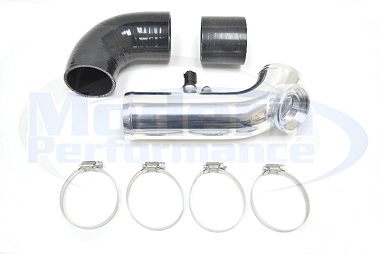

This kit completely replaces the stock stock restrictive rubber hose with a new 2.5" custom mandrel bent powdercoated silver tube, your choice of Hks, TurboXs, or Greddy flange, 4 ply silicone hose connectors, all hose necessary hose clamps, and one final key ingredient: a new temperature sensor that threads into the UHP.

Using this threaded sensor, you will no longer have the problem of pressure leaks around the stock grommet, and it won't blow out under high boost applications. To this date, this remains the only hard pipe setup that fits perfectly and does not leak boost. These units also feature an additional threaded bung that can be used for adding water injection or a meth kit. If you will not be using either of these options, simply leave the supplied plug in place.

These kits now include a 1/8" NPT bung for easy installation of a water methanol injection system in case you want to use meth. If you dont want to use meth, no problem, it comes with a block off plug already installed.

Lastly, if you dont already have one, youll need to install a blow of valve block off plate. We offer this piece with or without a block off plate.

Note: This Upper Hard Pipe will NOT work with the OEM Air Box or the AEM Short Ram Intake.

$174.99

Additional Options

AGP Blow Off Valve Block Plate, 03-05 Neon SRT-4 / 08-09 Caliber SRT-4

Model Number: 220117
Do you intend to install a new blow off valve on your Neon SRT-4, Caliber SRT-4, or PT Cruiser GT? You're going to need Read more

MPx Blow Off Valve Block Plate, 03-05 Neon SRT-4 / 08-09 Caliber SRT-4

Model Number: 220117-MACHINED
Going to install a new blow off valve on your Caliber SRT, Neon SRT, or PT Cruiser GT? You're going to need to install Read more

Ask a Product Question

  • Mike Tobiason
    Is it possible to run this pipe and use the stock blow-off/recirculating valve?
    1 Answer
    • Modern Performance

      The primary purpose of this kit is to install a aftermarket blow off valve. There is however NO point in running the factory bov and an aftermarket bov though. So if for whatever reason you want to use the factory bov, then you should choose the AGP upper hard pipe without flange.
  • geoff
    will this pipe fit a turbo smart blow off valve?
    1 Answer
    • Modern Performance

      Mono, AGP does not currently make any flanges for Turbo Smart as they are not very common in the USA. Look at what flanges are available in the pull down menu to see the current range of blow off valve flanges.
  • Joe
    I am running another hard pipe with a push in IAT. Its horrible... But I do love my Turbonetics BOV. It has the two bolt flange... which pipe do I need?
    1 Answer
    • Modern Performance

      If you want to keep your Turbonetics bov, then you'd need to get a AGP pressure pipe with the two bolt Greddy style flange. Your Turbonetics blow off valve will bolt right to the Greddy flange.
  • dev
    Will this pipe with a turboxs bov work with the stock air intake?
    1 Answer
    • Modern Performance

      No, this will definitely NOT work with the stock air intake.
  • Aaron
    Sooo what size are the couplers cause they look bigger than 2.5in
    1 Answer
    • Modern Performance

      The couplers are 2.5 inch inner diameter.
  • Anonymous
    Why wont this piping work with the AEM short ram intake?
    1 Answer
    • Modern Performance

      Because the blow off valve on the AGP uppipe will be right where the filter is.
  • Anonymous
    What do you do with the stock vacuum line that attaches near the stock temp sensor in the stock pipe? It does not look like there is a place for the vac line in the AGP pipe.
    1 Answer
    • Modern Performance

      There is a threaded boss designed for methanol injection, and you can buy a brass barb to fit inside the threaded boss and connect your tip sensor line to that barb.
  • logan
    Will this uppipe work with a K&N Cold air intake? Also, will this work with the GReady FV BOV?
    1 Answer
    • Customer Service Rep

      K&N Air intake, Injen air intake, Mopar air intake, Weapon R air intake, AGP cold air intake, IPP air intake, AEM air intake, Ebay intakes, etc. EVERY SINGLE intake we have ever seen, EXCEPT THE AEM SHORT RAM intake (and the knockoff intakes that put the filter in the same place) will work with this uppipe.
  • T Yang
    Will the flange fit hks ssqv bov?
    1 Answer
    • customer service rep

      As long as you select the pipe with the HKS flange, yes it will fit the HKS SSQV blow off valve perfectly.
  • T Yang
    Does that threaded a sensor replace the stock IAT sensor?
    1 Answer
    • customer service rep

      Yes, one of the advantages of this kit, is that it replaces the factory sensor that is prone to blowing out and or leaking.
  • Tyler
    I have a hahn S20g turbo on my car and now my hardpipe won't work because of the offset due to the turbo being larger. would you think that i would be able to make this piece work? its about a 3 inch difference.
    1 Answer
    • customer service rep

      The upper hard pipe goes between the intercooler and the throttle body. It has nothing to do with what turbo you have. You may be referring to the charge piping between the turbo outlet and the intercooler, we do not offer that piece.
  • Greg
    Will this work with a AFE Magnum Force Air Intake? Or will the BOV placement be a problem?
    1 Answer
    • customer service rep

      You can use the AGP upper hard pipe with blow off valve with the AFE air intake, however you'd need to trim some of the horizontal shield below the filter. Its plastic, so its not difficult to do.
  • George
    I just got my UHP and I realized the sensor looks nothing like the sensor in the picture at all. It is all plastic and you can't see the blue tip. It might be an upgraded one, I don't know though? There is also no wires, it just clips with the factory wires. Did you guys change this item or was there something wrong on your end? The sensor still has a thread that fits in the pipe but looks completely different than the sensor in the picture. Please help. Thanks!
    1 Answer
    • customer service rep

      The AGP sensor is a threaded sensor that is hardwired in. What happened is you bought the OEM temp sensor which is NOT threaded, and has a quick fit connector when you had the AGP uppipe. You bought the wrong one.
  • Anonymous
    Will this kit fit when I install the JM Fabrication intake manifold and 70 mm Boomba throttle body.
    1 Answer
    • customer service rep

      Probably not as we think that manifold moves the location of the throttle body. Please ask the manufacturer of the intake manifold if the throttle body is moved from the stock location. If not, then your good. If it is moved, this probably won't work.
  • Victor
    Do you have an option for the Tial Bov?
    1 Answer
    • customer service rep

      The industry standard, is the HKS and Greddy blow off valves. Therefore, those are the two most popular blow off valve flanges. We have never seen a Neon SRT-4 upper hard pipe with a Tial flange because of this.
  • Carlos
    Does this UHP would fit with your upgraded throttle body? Reason I ask because I know that throttle body and I had fitting issue with the OEM UHP.
    1 Answer
    • customer service rep

      The factory rubber pressure pipe between the intercooler and intake manifold is very rigid and doesn't flex well. So, its difficult to get the oem pipe onto the MPx throttle body. BUT, this AGP uppipe has a silicone 4 ply coupler that is much more flexible, making it easier to install with the throttle body!
  • Justin Smith
    If I ordered the upper hard pipe with no flange blc I wasn't sure what BOV was in my car when I bought it, will I have to replace the entire pipe if I want an aftermarket blow off valve or can it still be installed anyways?
    1 Answer
    • Customer Service Rep

      If you have the AGP hard pipe with no flange, the only way you'll be able to mount a blow off valve later is if you cut a hole in the pipe and weld on a flange to mount that specific blow off valve. You'd need an aluminum flange with the flange to mount your desired blow off valve (Greddy, Hks, etc).
  • Jason
    Will this fit 2003 pt cruiser gt..and is their a lower hard pipe to go with it..
    1 Answer
    • Customer Service Rep

      This will not fit a GT Cruiser. We do not know of any intercooler uppipe for mounting a blow off valve on a GT Cruiser so you'll have to have one custom made.
  • Mike Rocha
    will this also fit the Greddy type s bov?
    1 Answer
    • Customer Service Rep

      Yes, this upper hard pipe works with HKS, Greddy, TurboXS blow off valves, and there is a no blow off valve option for those of you that do not want to use an external bov, and wish to use either the factory diverter, or OEM replacement style diverter.
