TTi Long Tube Header, 95-05 Neon SOHC
+ ENLARGE IMAGE
Email iconEmail a Friend

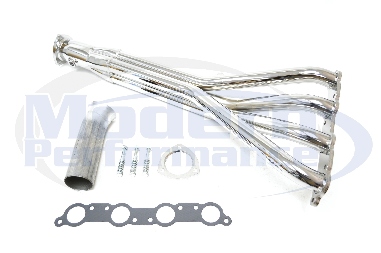

TTi Long Tube Header, 95-05 Neon SOHC

Review star icon Review star icon Review star icon Review star icon Review star icon
Read or Write Review
Model Number: 221932

TTi headers have proven to increase horsepower and torque!

Heavy-duty materials are used to construct headers for the ultimate in durability and longevity.

Systems are mandrel bent on sophisticated computer controlled bending machines for precise fit and uninterrupted exhaust flow. The mandrel bending process maintains a constant inside diameter of the tube for a smoother finish with no restriction of flow and no crimping of the tubes

  • 1-5/8" O.D. tubes with 2-1/2" 3-bolt collectors.
  • Collectors have built-in O2 sensor bungs, ready to accept sensing equipment
  • One piece header tubes, no slip tubes
  • Constructed of 16 gauge mild steel tubing
  • 3/8" thick laser-cut header & collector flanges, contoured for a leak free fit
  • Header set includes (1) header gasket and a 2.5" ball & socket style exhaust system adapter w/ hardware.

This header is designed for the SOHC engine and with it's large primaries, it will also work well with the SOHC Magnum head!

Header Coating Options, there are three finishes available:

  • None, Raw steel with no coatings.
  • Nickel Chrome Plated (outside only) - A bright and shiny decorative chrome finish.
  • Ceramic Coated with Thermal Barrier - A silver matte finish applied to the exterior steel surface to protect against rust and corrosion, extending part life. Another ceramic coating is applied on the inside of the header runners. Withstands temperatures up to 1200deg F, drastically reduces underhood temperatures and will not discolor or blue under normal conditions.

Note: This sleeved pipe meant to work with stock exhaust piping but will weld up to any other aftermarket piping if needed. This unit is also meant to eliminate the stock catalytic converter.

$279.99
TTi Long Tube Header, 95-05 Neon SOHC, Exhaust: Store Name

Ask a Product Question
  • Goran
    I baught this header with thermal coating last summer.
    Is it normal that it start to rust after a half salty winter?
    Technical its a master piece!
    G, Norway.
    1 Answer
    • Modern Performance
      You might see some light surface rust, but for the most part it should be in good condition.
  • Anonymous
    I recently purchased the TTi LT Header for SOHC and added the ceramic coating option. HWhat type of steel is the header made from?
    1 Answer
    • customer service rep
      The TTI header is made out of mild steel.
  • Nuno
    Since this gets rid of the cat even though it has the holes for the 2 sensors will this make my engine light turn on!?
    1 Answer
    • customer service rep
      If you have a stock pcm, then yes your check engine light on. If you have an aftermarket pcm, Mopar, AFX, Syked then you shouldnt have a check engine light by removing the catalytic convertor for race use. If you do get a check engine light you can prevent it by using a defouler that we sell. It screws into the oxygen sensor port and pulls the sensor further out of the exhaust stream, making the pcm happier.
  • Rafael
    Wanted to know if the exhaust ports on the header will match up with the ones on a magnum head as the ports are bigger on the head. Thanks
    1 Answer
    • Customer Service Rep
      Yes, the TTI header will work great with the Magnum head as the TTI header ports are larger than the Magnum head. OF course it works great with standard 2.0 sohc engines as well.
  • scottie plyler
    What are typical hp gain from the long tube tti header on sohc 2.0 dodge neon
    1 Answer
    • Customer Service Rep
      This really depends on what modifications you have. If your Neon is stock, you'd see about 5-7 peak horsepower, and at maximum redline it could be a difference of 15 horsepower because the factory horsepower falls off after 4500-5000 rpm. If you have a really modified Neon, you'll see even more.
  • Marty Metcalf
    If this cancels the cat, will it bolt up directly to the cat back dual exhaust system (borla/mopar) that you also sale?
    1 Answer
    • Customer Service Rep
      Yes, this is designed to replace the OEM downpipe with catalytic converter. The lower flange slip fits over the stock B pipe on the exhaust. You then can clamp it on or weld it on (welding its best).
  • Jeff Henderson
    Do you sell just the gasket?
    1 Answer
    • Customer Service Rep
      TTI's headers do not use a special gasket of any sort. You can use a stock style gasket from your local dealership or local auto parts stores.
  • Joe Knelsen
    Does this fit an 05 neon?
    1 Answer
    • Customer Service Rep
      Yes, this fits 95-99 Neons perfectly, and can fit 00-05 Neons with light modification. Second gen Neons have the o2 sensor on the other side compared to the TTI header, and so you will have to extend your 02 sensor wiring to install this header.
  • Jett t
    It says the adapter the is 2.5" whereas the original oem Downpipe is 2.25 so how would that mate up to an aftermarket or stock exhaust?
    1 Answer
    • Customer Service Rep
      Yes you are correct, the factory exhaust is 2.25, and the TTI header has a 2.5 inch collector, however, they mate up fairly well. It must be that the B pipe has a larger outer diameter than a normal 2.25, and so it meets up well. If you are concerned about leaks, its best to weld the collector and b pipe together.
