Injen Intercooler Pressure Piping, 2013-16 Dart 1.4L

Read or Write Review

Model Number: 226106

Free Shipping within the Contiguous United States!

The stock pressure piping is made of plastic and has several unnecessary bends and angles. These odd bends restrict the turbo's response time and cause horsepower to be lost. Just think about a garden hose, if you bend the hose, you'll notice a drop in water pressure/volume. Its the same thing with the OEM intercooler hoses!

Not only does the Injen Intercooler Pressure Piping improve on the OEM hoses by having softer bends and more straight sections, but they also shortened the length of the piping, which improves the speed in which the turbo builds up boost and the engine responds to you pushing down on the gas pedal!

On the Dyno this pressure piping yielded a 7 HP and torque peak gain, and at redline a nearly 15 HP gain over stock. The higher you rev your engine, the more efficient this piping becomes in comparison to the stock plastic piping, providing more power and improving throttle response.

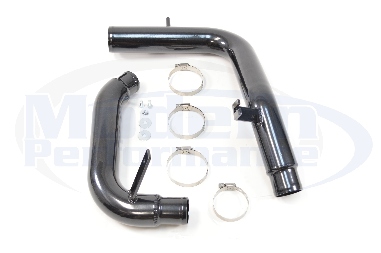

Note: This kit consists of two pieces of aluminum mandrel bent, USA made intercooler piping. This kit reuses your OEM couplers, and does not come with any couplers.

Fits all 2013-2016 1.4 Turbo Darts.

Manufactured from Lightweight 6061-T6 Aluminum Piping

Performance Stepped design utilizing 2.25" and 2.50" piping

Includes both hot and cold side pipes

Precision CNC machined, and TIG-Welded sensor flanges included

Available in Polished and Laser Black

Stainless Steel Band Clamp with Inner Protective Liner

Unique Injen Logo Plate for a Refined Style

Increase Throttle Response and Decreases Turbo Lag

Beaded Tube Ends to Help Prevent Couplers from Coming Off

Mandrel-bent Tubing for Increased Flow

Uses all factory mounting locations

Includes all necessary hardware for a hassle-free installation

Made in Pomona California, USA

Injen Technology Limited Lifetime Warranty

Note: Despite what Injen's packaging may say, this pressure piping kit is compatible with both manual and automatic transmissions.

Option

~~$322.95~~

$258.00

Additional Options

OEM Intercooler Charge Piping Throttle Body MPx Silicone Coupler 13-16 Dart 1.4 Turbo

Model Number: 226147-ELBOW-TB

If you own a 2013-2016 Dart with 1.4 Turbo motor, at some point you will likely have a torn rubber boot on the charge Read more

Injen Intercooler Pressure Piping, 2013-16 Dart 1.4L, Turbo Accessories: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
Alex

What affect does this product have with the cars warrantee?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Your car wont have any problems, or check engine lights with this set of intercooler piping. So, you can install this, and not have any problems at all. Most dealerships wouldnt even care if you installed these, and if you are concerned for any reason for when you're going in for warranty service, then you can take these off and switch back to the factory piping.
Allen

What size are the pipes?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  The diameter changes depending on where you measure, but they are roughly 2.25 inch in diameter. TONS of development and testing were put into making a set of piping that made consistent power gains across the board and what you see now is what made the most power out of many different designs!
John

Will this kit fit an Abarth?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  No, this is not interchangeable with the Fiat 500 Abarth, the intercooler piping and intercooler design are way different between the two vehicles.
garseeyuhh

Will i be able to see the piping with the engine cover on?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  You will be able to see a small amount of the piping under the cover but not much.
jeff

will this injen set fit manual also, or just automatic please?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  This piping set fits both the manual and automatic.
jeff

sorry, also, will this fit 2014 rally e 1.4l turbo

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  These fit ALL 1.4 Turbo Darts made from 2013-2016.
ryan

On your answer about the warranty you say the dealer shouldn't care about the install but that doesn't answer whether it voids the warranty for sure or not.

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  Wether or not this affects your warranty really depends on what part is having a problem. If you have a problem with your transmission, radio, suspension, electrical wiring, etc then you shouldn't have any issue at all. If
Ryan

What is the avg. installation time and does the front bumper need to come off?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  Most people with basic tools can install this kit in about 1.5-2 hours. You do not need to remove the bumper, you can simply remove the plastic under tray to access the piping better.
chris C

so just to be clear this dose not come with the couplers to fit them together, just the holes clamps?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  Correct, this kit comes as shown. Piping, and clamps. You reuse the factory rubber couplers.
Kadyn

Do the intercooler piping come with the intercooler as well?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This kit comes exactly as shown in the photos. Two pieces of piping, and clamps. This kit does not come with an intercooler. If you need a replacement intercooler you should talk to your local dealership or buy a used one off Ebay.
Jack

I live in California, is there a CARB EO# for this product?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  As of 6/11/2019 this item does not have a CARB certification number for approved use in California. It is fine to use in the other 49 states of the USA.
Mike

Does this piping kit come with the 90* rubber elbow coming off the back of the engine or do you have to reuse the stock piece? Mine is torn

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This kit is exactly as shown in the photos. There are no couplers because you reuse your stock couplers. If you need a replacement coupler, you may need to find one used, buy one from a dealership, or find an alternative coupler.
lonnie maynard

will this kit work on 2016 jeep renegage 1.4 turbo?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  We've never heard of anyone using these on a 1.4 Turbo Renegade. Even though its the same engine used in the 1.4 Dart, the Renegade seems to sit higher, so most likely the piping is different.
Brian Vacek

My Dart has already been pretty heavily modified when it comes to the motor, would I still see the same gains and benefits as a stock dart would with this?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  These pipes have smoother ends, shorter piping, so the engine responds faster and harder. It doesnt matter if your car is stock or heavily modified, there will be a noticeable improvement in changing your intercooler pressure piping to these pipes.
