Discounted/Installed Stage 3 Endurance South Bend non modular clutch w Aluminum Flywheel, 95-05 Neon/01-10 PT Cruiser

Model Number: 221177-stage3enduranceused

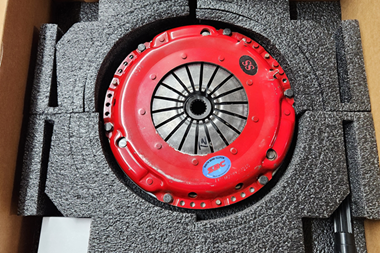

We have one stage 3 endurance clutch that was installed by a customer and removed. We sent it to South Bend to be inspected, and they tore it down, cleaned it up, inspected it, put in a new throw out bearing, and repackaged it. The customer put less than 3 miles on the clutch before deciding to go with a different South Bend clutch. This is a complete clutch kit with pressure plate, disc, aluminum flywheel and throw out bearing.

South Bend Stage 3 or 4 Non-Modular Clutch w/ Aluminum Flywheel, 95-05 Neon / 01-10 PT Cruiser

  • Stage 3 Daily - 400 ft-lbs - Recommended for single mass flywheel (SMF) when original design is DMF. This clutch package is designed for high HP vehicles desiring a start performance similar to O.E. The pressure plate is Race Engineered (SS) and SFI approved with significant load increase over stage 1,2 pressure plates (+600-800 lbs.). Expect a pedal effort increase of 20%-25%. Discs are assembled with heat-treated wear resistant hubs; drive plates and springs for high load transfer and dependable operation. The sprung centers on the disc in conjunction with the marcel fin between the linings create a dual dampening effect that simulates O.E. start performance. A Performance Organic friction material with a high metal content increases torque and RPM capability and maintains low operating temperatures which reduces wear and glazing. Recommended usages are daily, spirited street and occasional track.
  • Stage 3 Endurance - 425 ft-lbs - Recommended for single mass flywheel (SMF) when original design is DMF to achieve optimal performance. This kit uses the same Race Engineered SFI approved pressure plate as stage 3 daily package. The disc is designed for the special needs of a vehicle with circuit racing in mind. Kevlar friction material is used for its unique static to dynamic ratios of friction co-efficients at high energy levels. This translates to a perfect transition from one gear to the next. Discs are assembled with only performance components and equipped with torsion springs functioning as a damper between engine and gearbox.
  • Stage 3 Drag - 510 ft-lbs - Drag racing requires a Single Mass SFI approved Flywheel to be included with each kit when the original design is Dual Mass. This system features a Heavy Duty Pressure Plate modified for a puck style disc with no cushion between the linings to keep the clutch pedal travel short and quick. The puck design disc reduces rotational mass and total drive surface area while increasing pounds per square inch on the surface of the friction material. This combination minimizes inertia, accelerating the transfer of torque from the engine to the wheels. The friction material used for this race application is Graphite Impregnated Ceramic. This compound exceeded all other friction materials when testing for durability, reduced chatter, heat transfer and torque capacity. Recommended uses are drag racing, drifting and limited street.
  • Stage 4 Extreme - 525 ft-lbs - This is a "build to order" clutch kit intended for cars with HP modifications exceeding the stage 3 parameters. The Race Engineered pressure plate is modified for maximum plate load. The discs are puck design with sprung and un-sprung options. Friction material options include Sintered Iron and Graphite Impregnated Ceramic. Engagement characteristics can be abrupt. Hydraulic systems may need enhancing for proper clutch separation. Single mass steel SFI approved flywheels are required for safety. Torque ratings are calculated at time of ordering.

THIS PRODUCT HAS NO WARRANTY UNLESS:

  • It has been purchased from an Authorized Dealer. For example, if your purchase was made on Amazon.com or Jet.com, the warranty is void if purchased under MAP (Minimum Advertised Price). You can use this website to check pricing.
  • It is registered within thirty (30) days of purchase. Other conditions may apply, please see full warranty information.
$1,207.00
$950.00
Discounted/Installed Stage 3 Endurance South Bend non modular clutch w Aluminum Flywheel, 95-05 Neon/01-10 PT Cruiser , Drivetrain: Store Name
