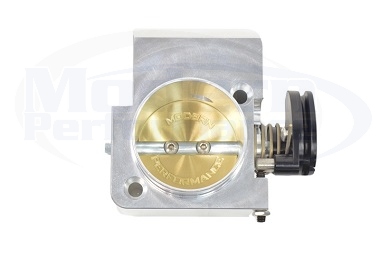

MPx 62mm Throttle Body & Spacer, 03-05 Neon SRT-4

Read or Write Review

Model Number: 220127-

Do you want a simple bolt on piece that will SIGNIFICANTLY improve your throttle response, and give your 03-05 SRT4 another 8-10 horsepower? If so, read further!

This throttle body makes more power, and improves acceleration because of the larger throttle plate and throttle bore that allows more air to pass than the factory throttle body.
The size of the factory throttle body is 55mm and it necks down to 52mm, whereas the MPx throttle body has a 62mm bore.

The MPX throttle body and spacer was made from scratch out of CNC machined aluminum, and is anodized with a special hardcoat for resistance to corrosion and oxidation.

Your stock sensors will attach onto the throttle body, and the throttle body and spacer piece mount directly to your intake manifold.
Theres NO cutting, or modification to your intake manifold, or air intake system needed. We also provide installation isntructions to help you install this onto your car.

Unit comes complete with gasket to be used in between the spacer and the throttle body, as well as bolts to attach it to the intake manifold.

Please note: if you have a stock ecu tune, we recommend you not install this. This throttle body works best with aftermarket tunes such as the Mopar stage 1, stage 2, stage 3, Diablosport tunes, and other tunes, basically ANYTHING except the stock ecu flash. This is because the stock pcm flash is not designed for a larger throttle body and can therefore have a hanging idle when decelerating. Your car will still run and idle fine if you install this with a stock pcm flash but could have a high idle when coasting to stop lights, etc.

$289.99

MPx 62mm Throttle Body & Spacer, 03-05 Neon SRT-4, Throttle Body & Intake Manifold: Store Name

Ask a Product Question

- *E-mail: (Required)
  *Name: (Required)

  Characters remaining: 500
  Our Q&A program is designed to educate our community.
  This is not to answer questions about your orders, or problems you are having with a part you ordered. If you have questions about a part you have already ordered, please contact us by email at info@modernperformance.com or call us 713-270-8520 for faster service.
Sylvester

Will this fit a 2.0L since the 60mm's are discontinued??

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  No, these are quite a bit different, and they are not interchangeable with the 00-05 Neon.
daniel van pelt

Hello, was just wondering if the mpx 62mm throttle body will work on the 2005 pt cruiser turbo?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  No, this will not work on a PT Cruiser for the following reasons:
  1) The PT throttle cam rotates counter clockwise, this throttle body rotates clockwise
  2) This has a spacer, the PT does not
S.Markovic

Does its work well with DiabloSports Performance tune or i need a custom tune?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- customer service rep

  The MPx throttle body works very well with the Diablosport tune! No custom tune needed.
sheldon

Is this throttle body 62mm completely?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Its 62mm at the inlet, and 59mm at the outlet. It slightly tapers, because the inlet to the intake manifold is 59mm inlet size.
Joey

Would the stock charge pipe fit hose into this throttle body fine?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Its a very tight fit with the factory uppipe, its really best to use the AGP uppipe with this throttle body because it has silicone couplers which are more pliable than the factory rubber piping.
Quinn

Will you guys sell the spacer only?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  As of 11/29/2016, we do not sell the spacer separately. This is because when we make this throttle body we make them in equal batches of throttle bodies and spacers and do not have spares.
mina

Is this kit complete, or do I need to purchase any other gaskets? Also, will this work fine with an aftermarket ecu flash like the Syked tune?. I also have the JMB upper/lower hard pipes and mopar cai.

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  There are two gaskets needed to install this, and both are included. The throttle body to spacer gasket, and the spacer o ring. So, nothing else is needed on your part.

  This will work fantastic with the Syked tune and all other pcm flashes like the Mopar staged tunes, Diablosport, SCT, etc. It will work with a stock pcm, but its best to use this with aftermarket performance pcm flashes like mentioned above.

  Because the throttle body has a larger outer diameter, its best to use this with an aftermarket upper pressure pipe with silicone coupler. Silicone couplers can expand better than the rigid factory rubber piping and its extremely difficult to put this on with the oem rubber pressure pipe.
Mike

I have the 62mm throttle body and it's leaking from the shaft seals. Do you have replacement parts for that?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  We have seen some high mileage 62mm throttle bodies that had wear around the shaft/throttle body, that were caused by thousands of opening/closings of the tb. It would actually wear the aluminum, and cause a vacuum leak. If you have an older throttle body and have a vacuum leak from the tb, its important to grab the throttle linkage, and move the throttle blade side to side to see if there is wear. If you don't have wear, and do just need seals, please contact us by email to discuss further.
mark

If I remove the throttle body will I have to replay both gaskets everytime I remove it ?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  The rubber o ring on the manifold can generally be reused multiple times. The paper gasket between the spacer and the throttle body generally cannot be reused and should be replaced.
Christopher C.

What's the hex screw for on the top of the throttle body?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  During the machining process of this throttle body, a hole needs to be drilled to cut the passages for the IAC. After its cut, its threaded and sealed off with the plug as its not used any longer.
Pedro

Having this bigger throttle body .. will it still pass smog?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  (Smog testing only applies to people living in California). This will not affect the emissions output of the car, however, the strict carb testing process also involves a visual check and this shiny silver throttle body will definitely not look stock. Perhaps you could paint it black to make it not look so obviously a non factory part?
JulioSrt4

would this throttle body work good on fbo e85 stock turbo or would overkill

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  This throttle body will work on a bone stock SRT4, or one that has a larger turbo. Its perfect for anyone that wants improved throttle response and more power.
Peyton Emmerich

I have the Diablo T1000 tuner that looks super old. The car is tuned on the custom Diablo tune from it. Would this work?

1 Answer
- E-mail: Name: (optional)

  Characters remaining: 500
  Type your response below:
- Customer Service Rep

  Yes of course, this will work on a all SRT-4's regardless which tune you have.
